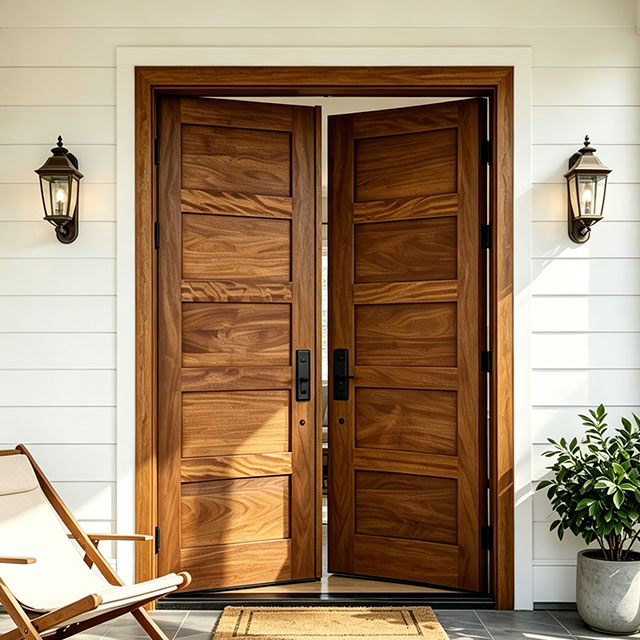

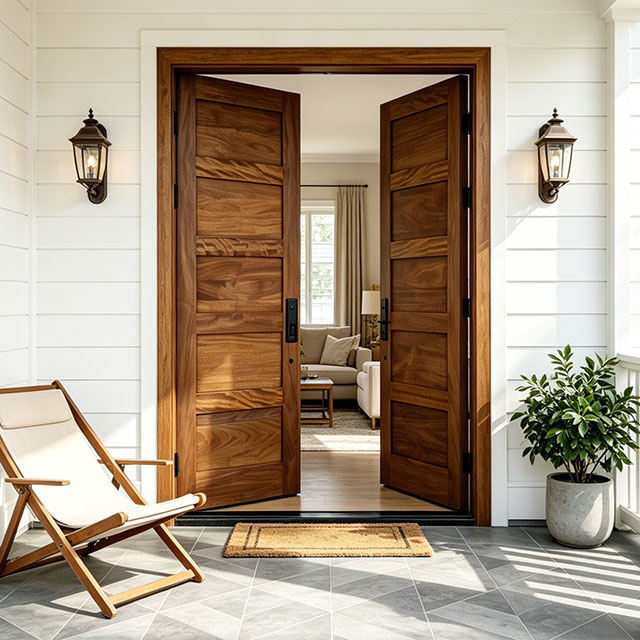

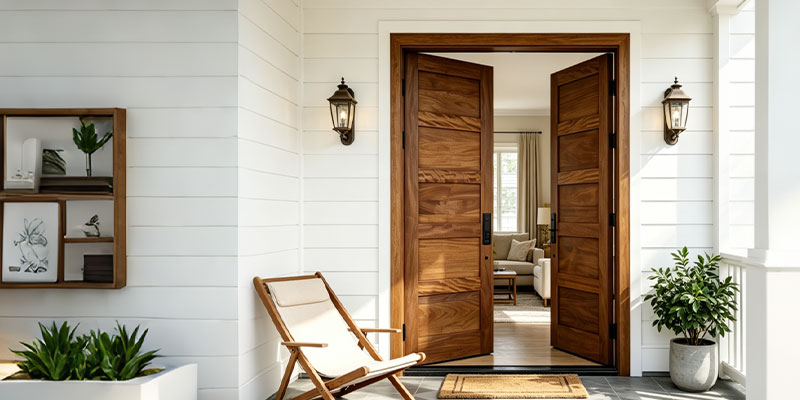

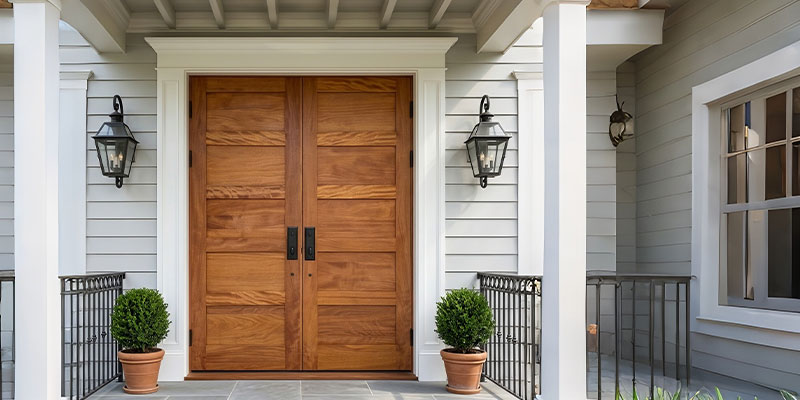

Architectural Shaker Style Solid Wood Entry Double Door
The Classic American 5-Panel Shaker Style Solid Wood Front Double Door System combines timeless architectural design with the strength and durability of premium solid wood construction. Inspired by traditional American craftsmanship, this elegant double entry door features five clean, recessed panels that create a balanced and sophisticated appearance suitable for both classic and transitional home styles.
Crafted from carefully selected hardwoods, the door system offers exceptional structural stability, long-lasting performance, and natural beauty. The solid wood core enhances insulation, sound reduction, and overall durability, while precision engineering ensures smooth operation and a secure fit. Available in a variety of wood species, finishes, sizes, and custom configurations, this front door system can be tailored to meet the unique requirements of luxury residences, custom homes, and upscale renovation projects.
Designed to make a lasting first impression, the Classic American 5-Panel Shaker Style Double Door delivers a perfect combination of elegance, craftsmanship, and functionality, creating a welcoming entrance that elevates the character and value of any property.
Crafted from carefully selected hardwoods, the door system offers exceptional structural stability, long-lasting performance, and natural beauty. The solid wood core enhances insulation, sound reduction, and overall durability, while precision engineering ensures smooth operation and a secure fit. Available in a variety of wood species, finishes, sizes, and custom configurations, this front door system can be tailored to meet the unique requirements of luxury residences, custom homes, and upscale renovation projects.
Designed to make a lasting first impression, the Classic American 5-Panel Shaker Style Double Door delivers a perfect combination of elegance, craftsmanship, and functionality, creating a welcoming entrance that elevates the character and value of any property.
-
Waydoor
Product Specifications
Product Description
Core Material
100% Pure Premium North American White Oak
Coating
Advanced Outdoor Multi-Layer Water-Based Matte Coatings
Brand & Heritage
WAYDOOR (30+ Years Global B2B Solid Wood Mastery)
Product Style
Authentic American 5-Panel Shaker Double Door System
Door thickness
Front door 1-3/4" (45mm) or custom
Jamb Size
Front door 167mm or custom
Key Features & Highlights
Quartersawn White Oak — Solid, Not Veneer. All stiles, rails, and panels are machined from American White Oak. delivering radial shrinkage below 4.5%. No veneer faces, no engineered substrate, no MDF.
Monolithic Solid Core — Single Species, Edge-Glued. Full-length White Oak staves bonded with Type I waterproof adhesive in a traditional stile-and-rail frame. No mixed-species filler. Provides genuine screw-holding depth for heavy hardware and produces a solid, resonant knock with zero hollow echo.
Pre-Hung Structural Frame with Adjustable Hinges. Three hinges per leaf in matte black 304 stainless steel. Symmetrical hinge prep allows the active leaf to be designated left or right on site. Full-perimeter silicone bulb compression seal, aluminum thermal-break sill, and integrated T-astragal are factory-installed.
Corrosion-Resistant Hardware Suite. Vertical grip plates in 304 stainless steel with matte black. Schlage C keyway prep with 2-1/8" bore and adjustable 2-3/8" to 2-3/4" backset, compatible with most residential smart locks. Concealed wire channel routing available for hardwired access control
Acoustic Separation. Solid monolithic core plus full-perimeter compression seal plus thermal-break sill delivers OITC ≥ 30 — a meaningful difference for homes on busy streets, near airports, or in dense urban lots.
Dimensions
Parameter | Standard | Custom Range |
Overall Opening Width | 72" (1,829 mm) | 60"–96" (1,524–2,438 mm) |
Overall Opening Height | 96" (2,438 mm) | 80"–120" (2,032–3,048 mm) |
Leaf Thickness | 2-1/4" (57 mm) | 2-1/2" (64 mm) heavy-duty option |
Panel Configuration | 5 recessed flat panels per leaf | as your custom |
Swing | In-swing standard | Out-swing with reversed sill drainage |
Materials
Parameter | Standard | Custom Range |
Wood Species | American White Oak | African Mahogany, Red Oak, Red Cedar |
Core Type | Monolithic solid | Veneer+Plywood + Solid Wood Filing |
Moisture Content | 8–10% ±1% | 8–10% ±1% (kiln-dried to destination climate EMC) |
Finish
System | Water-Based Paint for Outdoor Use |
VOC | ≤ 50 g/L, Environmentally friendly |
Standard Colors | Natural Clear, Honey Amber, Weathered Grey, Espresso ect. |
Custom Color | RAL / NCS matching available |
Optional Upgrade | Marine-grade topcoat for coastal or high-UV environments |
Hardware
Hinges | 3 per leaf, 4"×4" ball-bearing, 304 stainless steel |
Lock Prep | Standard US-spec cut-out dimensions |
Threshold | Aluminum Alloy |
Applications
Luxury Single-Family Residence. The Shaker five-panel proportion reads equally well against Modern Farmhouse, Coastal Transitional, New American Classic, and contemporary flat-plane facades. The warm honey-to-umber White Oak tones soften modern architecture without looking rustic.
Multi-Unit Townhouse Development. Uniform entry specification across 10–50 units creates cohesive streetscape identity. Pre-hung assembly accelerates the framing-to-lockup cycle.
Boutique Hospitality. The tactile weight of solid White Oak, the visual warmth of natural grain under porch light, and the acoustically sealed threshold shape guest perception of quality. Custom stain matching to brand palette and hardware finish coordination available.
Design-Build Firm. For teams self-performing carpentry, the pre-hung system eliminates hinge mortising, weatherstrip routing, and sill coordination. The door arrives as a single square sealed assembly: lift, shim, fasten, bolt on hardware. Included data package supports client handover.
Architectural Millwork / Joinery Shop. Available as slab-only for shops that build their own frames. Detailed shop drawings provided with all mortise locations, hinge prep dimensions, and stile cross-sections.
Decades of Expertise in Solid Wood Door Manufacturing
Exceptional doors begin with exceptional materials. Every Waydoor door is manufactured using carefully selected hardwoods, including White Oak, Red Oak, Mahogany, Walnut, and other premium species. All timber undergoes rigorous inspection and controlled conditioning to ensure optimal moisture content, structural integrity, and long-term performance.
Our material selection process helps reduce the risks of warping, cracking, twisting, and dimensional instability while preserving the natural beauty and character of genuine hardwood.
Advanced Manufacturing Process
Waydoor integrates modern production technology with skilled craftsmanship to ensure consistent quality across every project.
Our manufacturing process includes:
Raw material inspection and grading
Moisture content conditioning and stabilization
Precision CNC machining
Engineered joinery construction
Panel assembly and structural reinforcement
Surface sanding and finishing preparation
Multi-layer coating application
Final assembly and hardware preparation
Comprehensive quality inspection
Protective packaging and shipment preparation
Each production stage is monitored to ensure strict compliance with project specifications and international quality standards.
Strict Quality Control System
Quality is embedded into every stage of production. Our dedicated quality control team conducts multiple inspections throughout the manufacturing process to ensure every door meets dimensional, structural, and aesthetic requirements.
Inspection procedures include:
Material verification
Moisture content testing
Dimension accuracy checks
Surface finish evaluation
Structural integrity inspection
Hardware preparation verification
Packaging inspection
Final pre-shipment quality audit
This systematic approach ensures consistency, reliability, and long-term customer satisfaction.
Global Logistics Support
With extensive export experience, Waydoor provides reliable logistics solutions for customers worldwide.
Our logistics support includes:
FOB, EXW, DDP, and customized shipping terms
Ocean freight coordination
Container loading optimization
Export documentation assistance
Project shipment management
Consolidated and bulk order handling
For North American customers, our established logistics network and warehousing resources help improve delivery efficiency and supply chain reliability.
A Reliable Long-Term Partner
Choosing Waydoor means partnering with a manufacturer dedicated to craftsmanship, quality, innovation, and customer success. From material selection and engineering to production, quality assurance, packaging, logistics, and after-sales support, every step is designed to provide confidence, efficiency, and lasting value.
Waydoor delivers more than premium solid wood doors—we deliver dependable manufacturing solutions that help our partners grow their businesses and achieve long-term success in competitive.
Most Frequently Asked Questions
Is the finish environmentally friendly?
A: Yes. Water-based coatings with low VOC emissions are available.
Can the door withstand humid or coastal climates?
A: Yes. Proper sealing and engineered construction help improve durability in challenging climates.
What certifications can be provided?
A: Certification options may include CE-related sourcing documentation and project-specific compliance requirements depending on market needs.
What is the typical production lead time?
A: Generally 25–45 days depending on specifications and order quantity.
Can the hardware be supplied together?
A: Yes. Hinges, handles, locks, thresholds and weather seals can be supplied.
